Cone Penetration Testing (CPT) is a method used to determine the geotechnical engineering properties of soils and delineating soil stratigraphy. Advances in CPT equipment over the years has evolved so the technique can be used not only for geotechnical investigations, but also for geo-environmental investigations.

More information can be obtained from the ground in addition to the CPT cone data by choosing a specialised CPT cone. Such cones include:

CPT Ball Cone Additional Testing

Soil Moisture Cone Penetrometer

The volumetric percentage of water in soil (Soil Moisture) has become an important consideration in geotechnical and environmental design and is one of the most fundamental factors in influencing soil strength.

The Soil Moisture Cone (SMC) provides real-time in-situ data logs of soil moisture and resistivity without the need for soil sampling and also measures the standard geotechnical parameters from the attached Piezocone.

The SMC takes advantage of the relationship between the soil dielectric constant and moisture, known as Topp’s Equation. This relationship is not strongly influenced by soil type and resistivity if the dielectric measurement is made above a critical frequency of approximately 30MHz.

The inner two electrode rings of the cone determine the soil’s moisture content without the need for soil sampling by measuring the frequency shift of a high-frequency excitation signal as it passes through the soil near the surface of the module.

The outer two rings of the four electrodes are used to measure resistivity. An AC voltage signal of constant amplitude is applied across the rings. A voltage measurement, which is proportional to the current through the soil, is made across the sampling resistor.

Soil Moisture Cone (SMC)

Electric Vane

The electrical vane tester (EVT) measures the undrained and remoulded shear strength of clays in situ as well as calculating the layer sensitivity.

This model (Eurocode model) has the vane inside a protection shoe during the push and is pressed out from the protection when the measuring level is reached. The vane comes out by 30cm and then standard measuring, including soil sampling, can be commenced.

Once testing has finished, the vane is retracted back into the protection shoe and may continue pushing down to the next level. The main advantage of the EVT is that it is a fully automated reliable system. The standard vane has a rectangular end and measures 65 x 130mm.

electrical vane tester (EVT)

Geonor H10 Vane

The Geonor H10 vane is used to measure, ‘in situ’ the undrained shear strength and the re-moulded shear strength in clays. The system is used predominantly in soft clay material.

The system is designed to be pushed into the soil using a CPT rig, to reduce the potential soil disturbance associated with drilling and soil sampling. The vane comprises a number of different parts; the vane itself sits on a number of 1m long inner rods.

The inner rods run up inside the 1m long outer rods. At the base of the outer rods is the vane housing shoe into which the vane is located when being pushed through the ground; finally, at the top of the vane is the calibrated torsion head.

Geonor H10 vane

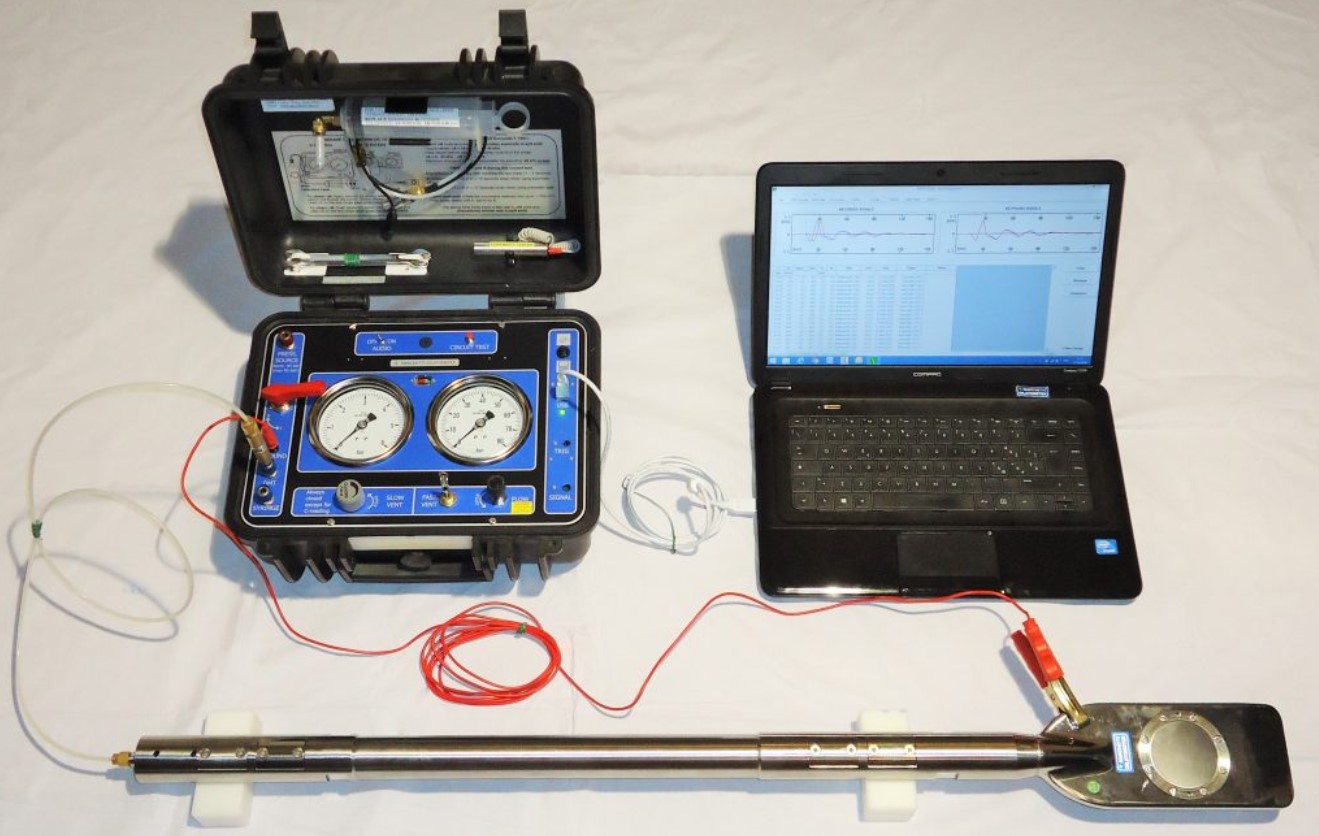

Seismic Marchetti Dilatometer

The dilatometer is a tool used to estimate settlement and operative moduli in both sands and clays, and also the shear strength in clay.

A dilatometer test, including soil sampling, consists of pushing a flat blade located at the end of a series of rods, into the ground. Once at the testing depth, a circular steel membrane located on one side of the blade is expanded horizontally into the soil sampling. The pressure is recorded at specific intervals during the test. The blade is then advanced to the next test depth.

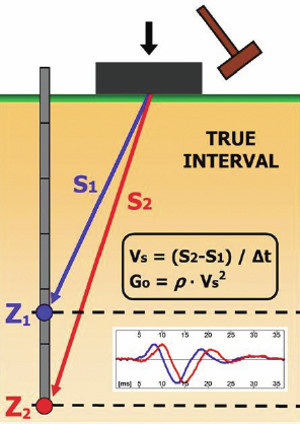

The seismic dilatometer has the added module behind it of dual seismic receivers. The seismic receivers allow the measuring of shear wave velocity (Vs). The seismic source is obtained by a swinging hammer hitting horizontally onto a metal plate.

The shear wave velocity is the ratio between the difference in distance between the energy source and the two receivers and the measured delay time of the pulse from the upper to the lower receiver. Vs may be converted into the initial shear modulus G0.

Seismic Marchetti Dilatometer

The two measured pressures (p0 and p1) from the dilatometer are used to obtain the three-index parameter:

  • Id – Material Index
  • Kd – Horizontal Stress Index
  • Ed – Dilatometer Modulus

By means of correlations the index parameters are used to interpret the following parameters:

  • M – Oedometer modulus (both in cohesive and cohesionless soils)
  • cu – Undrained shear strength (cohesive soils)
  • Ko – In situ earth pressure coefficient (cohesive soils)
  • OCR – Overconsolidation ratio (cohesive soils)
  • ? – Friction angle (cohesionless soils)

Full-flow Penetrometers

Full-flow penetrometers (Ball Cone and T-bar) are used to measure the undrained shear strength (Su) of low-strength cohesive soils.

These penetration tests integrate a standard cone penetrometer with a large spherical (Ball Cone) or bar attachment (T-bar) that replaces the standard tip.

An advantage of using full-flow penetrometers is that they have higher load cell forces in very soft soils, which improves the data quality as well as being time-efficient and cost-effective.

Full-flow penetrometer Ball Cone

MOSTAP Soil Sampler

The MOSTAP soil sampler is a relatively ‘undisturbed’ pushed soil sampler. The sampler provides good samples of soil for identification and classification purposes. The samples may also be used for classification lab testing and triaxial and odometer lab tests.

The main advantage of this system is the ability to obtain soil sampling at discreet depths. The system is pushed into the ground with the cone tip in place.

When the depth of the required sample is reached a ‘fishing tool’ is lowered down, releasing the cone tip to reveal the cutting shoe. The system is then pushed a further meter in order to take the sample.

The sampler goes inside a stockinet (to reduce the side friction) and then inside a plastic sample tube and it takes a 1m long 65mm sample.

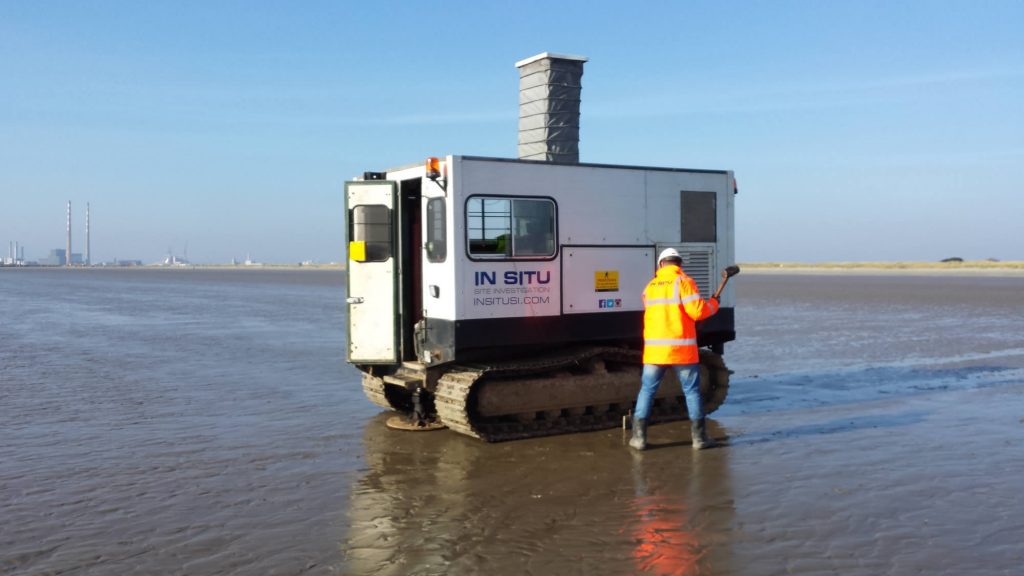

Additional CPT testing

Shelby Soil Sampler

The Shelby sampler uses a conventional Shelby tube which has an internal diameter of 85mm. It is pushed in using a CPT rig with a cone face at the front. When the required depth is reached for the soil sampling, the cone face is released and held at a static position while the Shelby tube is pushed into the ground.

The holding of the cone face produces a suction much like a piston sampler. The Shelby tube allows soil sampling to be taken of 450mm in length.

Compared with the MOSTAP, the Shelby gives a higher quality sample, but it does not have a core catcher at the end of it to retain the sample as the MOSTAP does.

Shelby Soil Sampler
